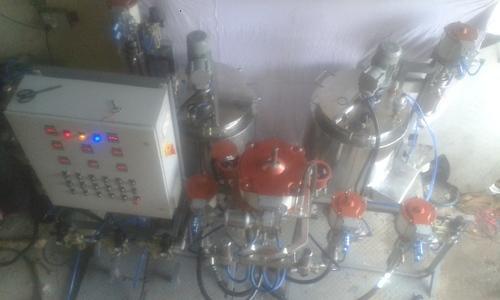

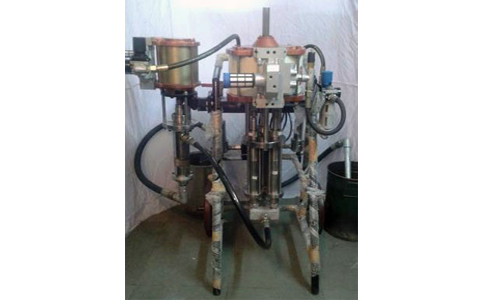

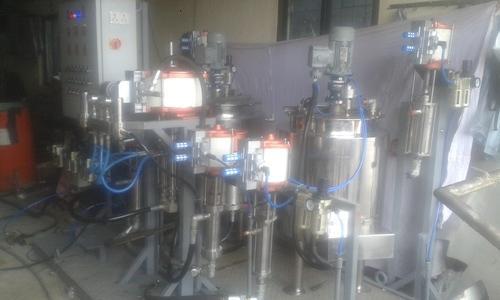

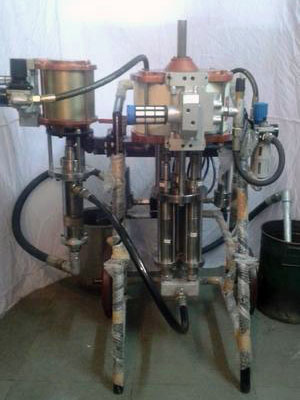

Two Component Hot Airless Spray Painting Equipments
We are the leading manufacturer and supplier of Two Component Hot Airless Spray Painting Equipments. we offer Two Component Hot Airless Spray Painting Equipment, Two Component Airless Painting Machine and Hot Two Component Spray Painting System.
Two Component Hot Airless Spray Painting Equipments
Our organization is counted amongst the most distinguished manufacturers and suppliers of an extensive array of Two Component Hot Airless Spray Painting Equipment. Manufactured as per the guidelines and norms laid down by the industry, these products are designed for tough working conditions and is suitable for two component high viscosity, solvent-less, low solvent coating, semisolid coating and marine coating. Moreover, we make sure that the consignments are timely delivered at clients' destination using easy shipment modes.
Features:
- Pneumatically sensed air motor
- High flow rate
- Stainless steel rust proof hydraulic body
- Easy maintenance
- Ice free air motors
- Easy to handle
- Mounted on pneumatic trolley
- Fixed mixing ratio
Optional Features:
- PLC based monitoring system for mixing ratio, digital display and auto flush
- Electrical direct or oil/water jacketed heating
- High viscosity transfer pump with ram/drum-press
Technical Specifications :
| MODEL | RTT 2X55X110 | RTT 2X55X55 | RTT 2X110X72 | RTT 2X110X55 |
| *Mixing Ratio | 1 : 1 | 2 : 1 | 3 : 1 | 4 : 1 |
| *Transfer Ratio | 74 : 1 | 70 : 1 | 75 : 1 | 80 : 1 |
| Output per Cycle | 220 cc | 165 cc | 295 cc | 275 cc |
| Air Motor Piston Ø | 300 mm | 254 mm | 350 mm | 350 mm |
| Stroke Length | 120 mm | 120 mm | 120 mm | 120 mm |
| Recommended Spray Volume per minute | 5.5 ltr | 4.1 ltr | 7.3ltr | 6.8 ltr |
| Air Inlet Pressure Max. | 6 bar | 6 bar | 6 bar | 6 bar |
| Output Pressure Max. | 444 bar | 420 bar | 450 bar | 480 bar |
| Air Consumption ltr / cycle Max. | 17.0 | 12.0 | 23.0 | 23.0 |
